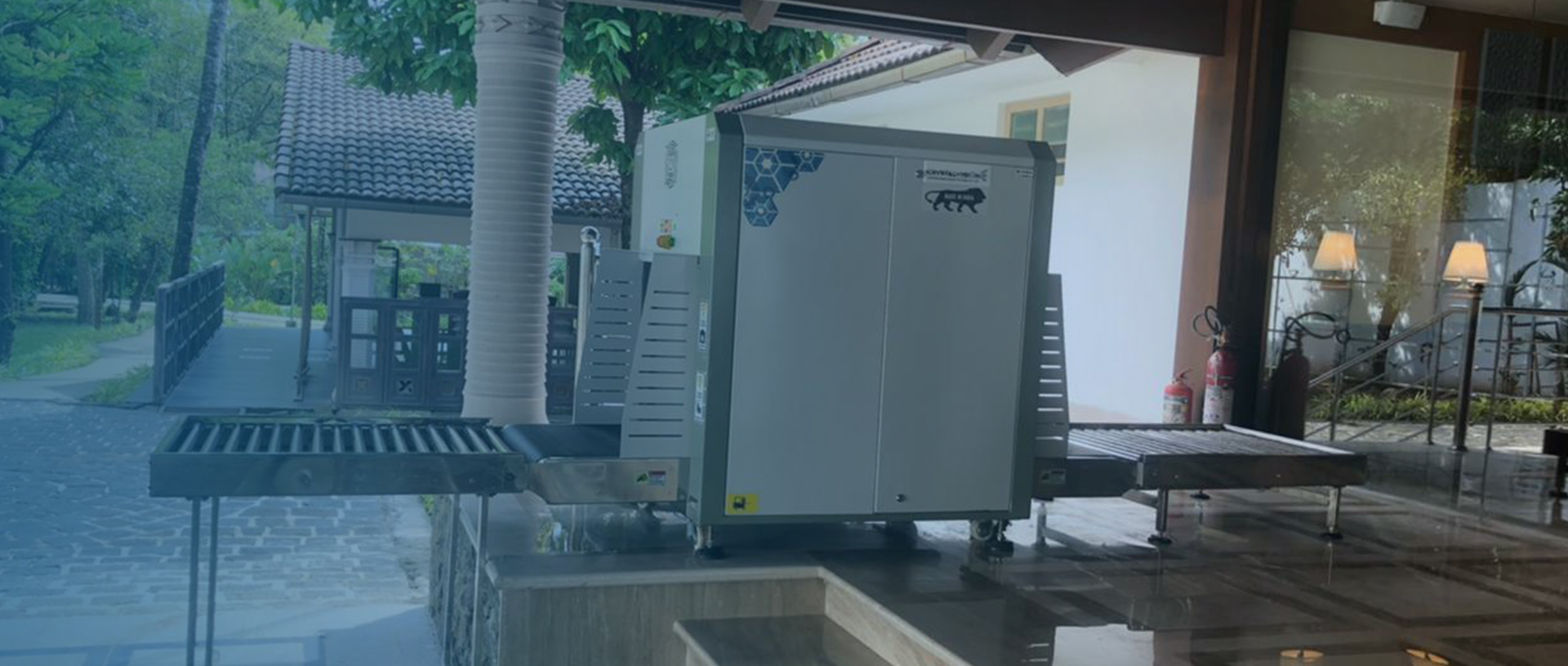

Krystalvision KV 7 Series X-ray baggage screening system
KV 7 Series X-Ray Baggage Inspection System

KV7560 X Ray Luggage Scanner

The KV7560 using an advance dual energy x ray systems It is perfectly design for inspection of suitcases, oversized carry-on baggage, and parcels. It has featured a large tunnel size of 750 mm (W) x 600 mm (H) and can subsequently scan large baggage & parcels that exceed the airport carry-on standard dimensions for hand baggage. It can be integrated with network supervisory work station and TIP practical functionality.

Product Overview

KV7560 X Ray Luggage Scanner

The KV7560 generate detailed scanned and can be electronically zoomed up to 64 x without any distortion compared to other systems. KV7560 has attractive external appearance, innovative threat detection technology to provide automated threat recognition and throughput rates

It is an ideal security inspection system to inspect oversized carry-on baggage & parcels in hotels, government institutions, post offices, mall centers, multiplex theaters, embassies, convention centers, colleges, schools, air ports, railway stations, metro stations and bus terminals.

Networking & remote viewing
Excellent spatial and wire resolutions
Crystal clear imaging
Low power consumption
Windows 10 operating system
Advanced image archiving up to 200000 images
High resolution image display
Compatible to read and scan barcode
KV7560 X Ray Luggage Scanner
Certifications Krystalvision certifications
Technical Feature

Technical Feature

Networking & remote viewing
Excellent spatial and wire resolutions
Crystal clear imaging
Low power consumption
Windows 10 operating system
Advanced image archiving up to 200000 images
High resolution image display
Compatible to read and scan barcode
Technical Specification

Technical Specification

Tunnel opening 750 mm (W) x 600 mm (H) (H) Approx.
Steel Penetration Standard 35 mm, Typical 37 mm of steel
Wire Resolution 40 AWG Typical, 38 AWG Guaranteed
Imaging 3 color or 6 color imaging
Conveyor Speed 0.18 m/sec to 0.3 m/sec
Weight Approx 400 Kg
